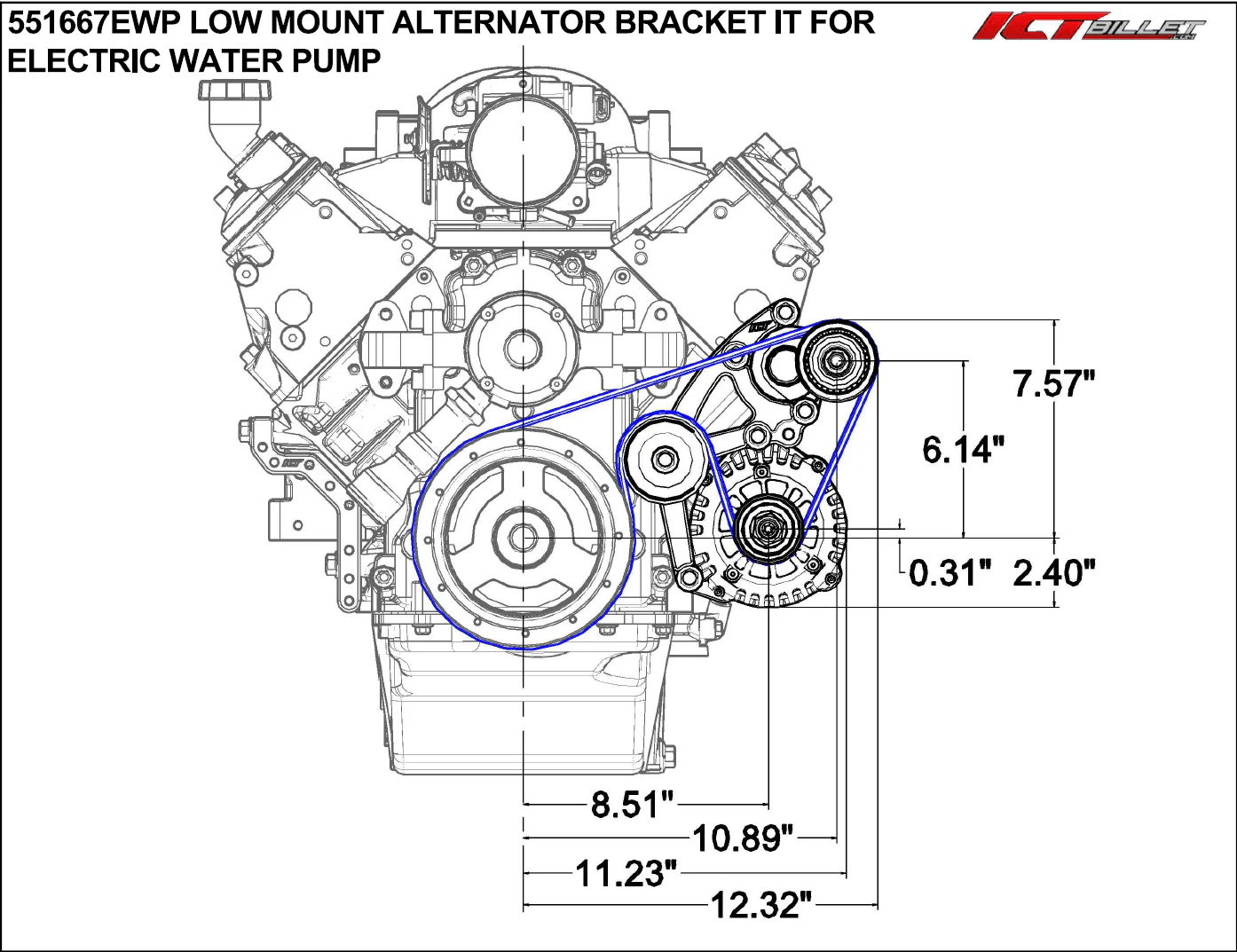

LS Low Mount Alternator Bracket for Electric Water Pump w/ Manual Tensioner Compatible with Camaro LS1
Alternator Bracket w/ Manual Belt Tensioner

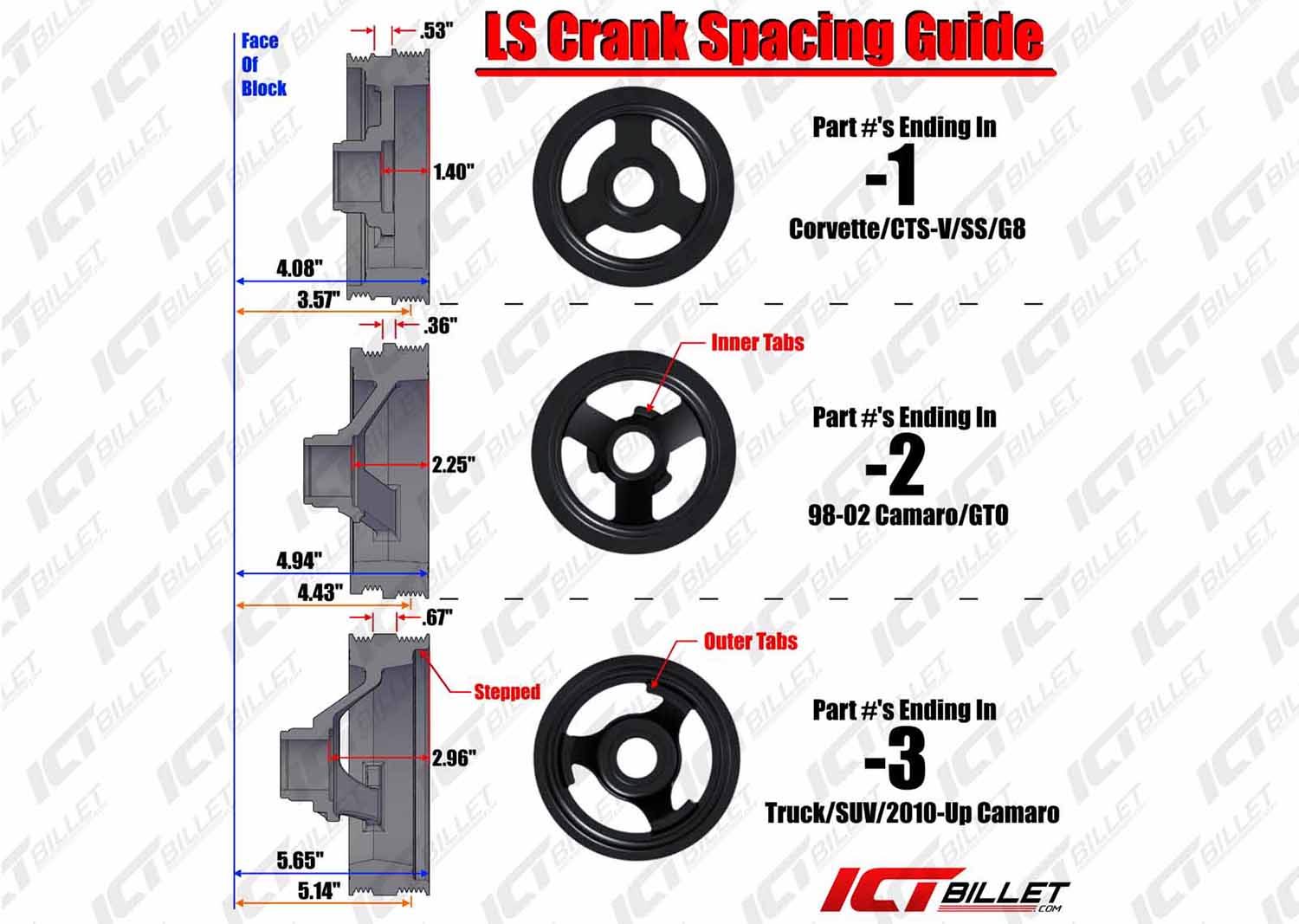

Compatible with: 1998-02 Camaro LS1 (GTO any year) crank pulley (ICT# BAL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: bracket, manual belt tensioner, idler pulley, and mounting hardware

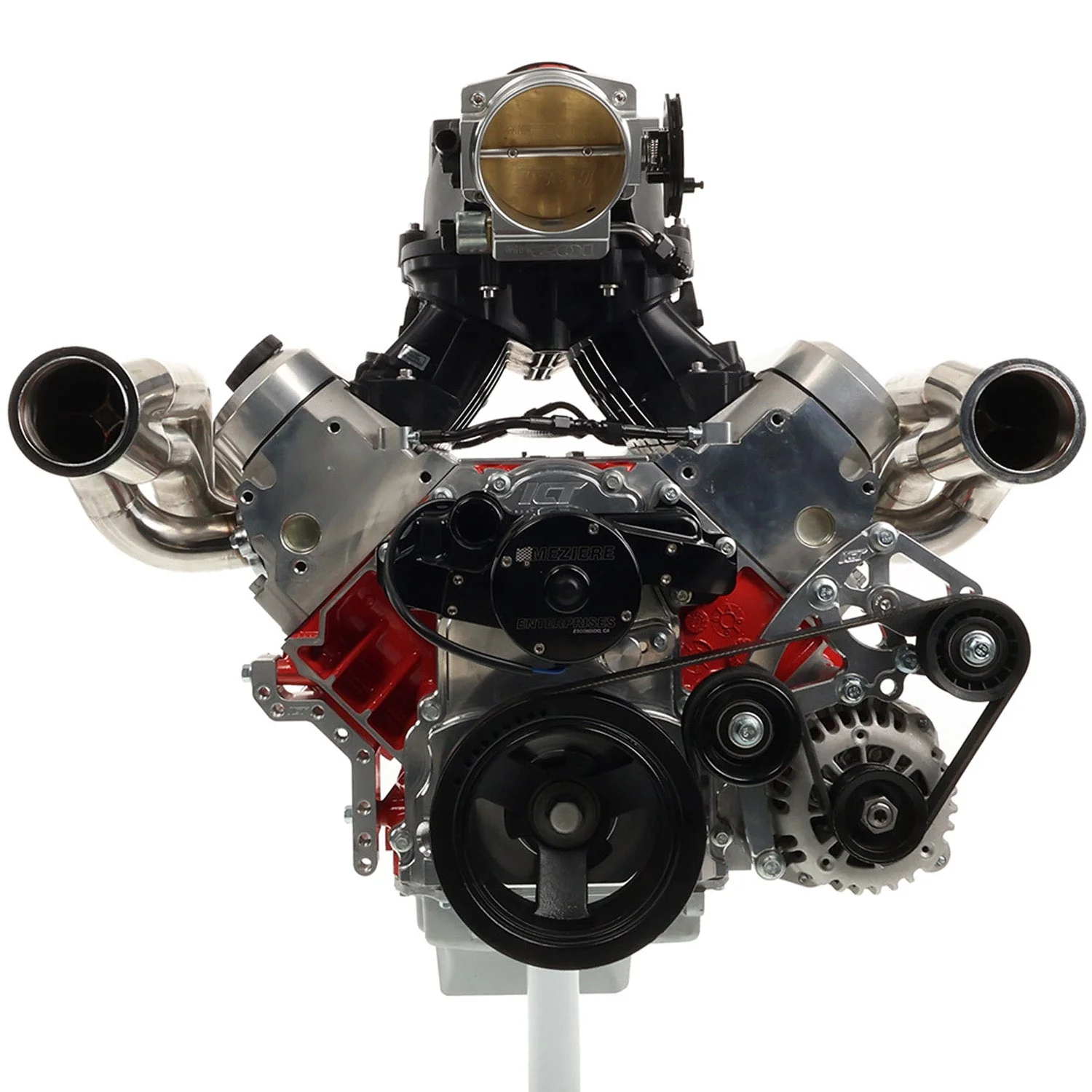

- Mounts the alternator low on the driver side when using electric or remote water pump
- Alternators: (ICT# ALT300 (105amp), ALT302(160amp)); double-mounting holes allow for "truck" alternators as well as Corvette/G8/ 2010-15 Camaro bolt pattern alternators (not compatible with CTS-V alternators)
- Includes manual belt tensioner for race applications to eliminate belt skip on decel
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Also available, wire adapters to go to or from 4 pin/2 pin alternators (ICT# WAALT30 and WAALT40)
Compatible with 505K6 (50.5 inch) belt when using the 105amp alternator
Alternator Bracket w/ Manual Belt Tensioner
Compatible with: 1998-02 Camaro LS1 (GTO any year) crank pulley (ICT# BAL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: bracket, manual belt tensioner, idler pulley, and mounting hardware
- Mounts the alternator low on the driver side when using electric or remote water pump
- Alternators: (ICT# ALT300 (105amp), ALT302(160amp)); double-mounting holes allow for "truck" alternators as well as Corvette/G8/ 2010-15 Camaro bolt pattern alternators (not compatible with CTS-V alternators)
- Includes manual belt tensioner for race applications to eliminate belt skip on decel
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Also available, wire adapters to go to or from 4 pin/2 pin alternators (ICT# WAALT30 and WAALT40)
Compatible with 505K6 (50.5 inch) belt when using the 105amp alternator
$227.99
LS Low Mount Alternator Bracket for Electric Water Pump w/ Manual Tensioner Compatible with Camaro LS1—
$227.99
Description
Alternator Bracket w/ Manual Belt Tensioner
Compatible with: 1998-02 Camaro LS1 (GTO any year) crank pulley (ICT# BAL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: bracket, manual belt tensioner, idler pulley, and mounting hardware
- Mounts the alternator low on the driver side when using electric or remote water pump
- Alternators: (ICT# ALT300 (105amp), ALT302(160amp)); double-mounting holes allow for "truck" alternators as well as Corvette/G8/ 2010-15 Camaro bolt pattern alternators (not compatible with CTS-V alternators)
- Includes manual belt tensioner for race applications to eliminate belt skip on decel
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Also available, wire adapters to go to or from 4 pin/2 pin alternators (ICT# WAALT30 and WAALT40)
Compatible with 505K6 (50.5 inch) belt when using the 105amp alternator
