2003-2008 Lamborghini Gallardo LS Engine Mount Conversion Swap Kit

Compatible with 2003-2008 Pre-LP Lamborghini Gallardo applications

• Designed and manufactured in our facility to replace the factory Gallardo V10 with a LS V8
• Heavy duty mounts rated for vehicles up to 1,500hp with a painted black finish for long lasting protection
• These mounts move the transmission 2 inches back from the factory location. This will require the use of axle spacers.
• Uses factory transmission mount nut

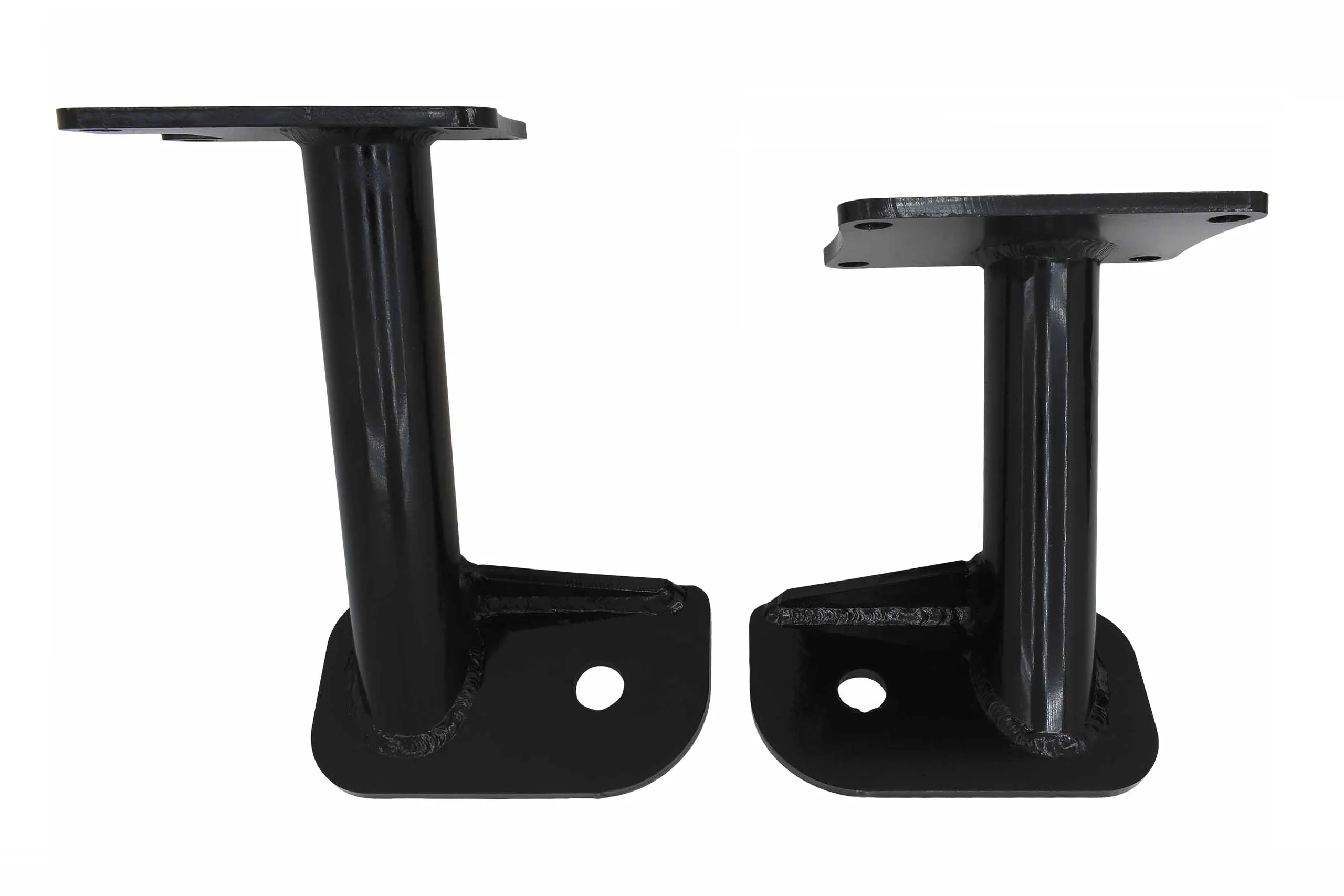

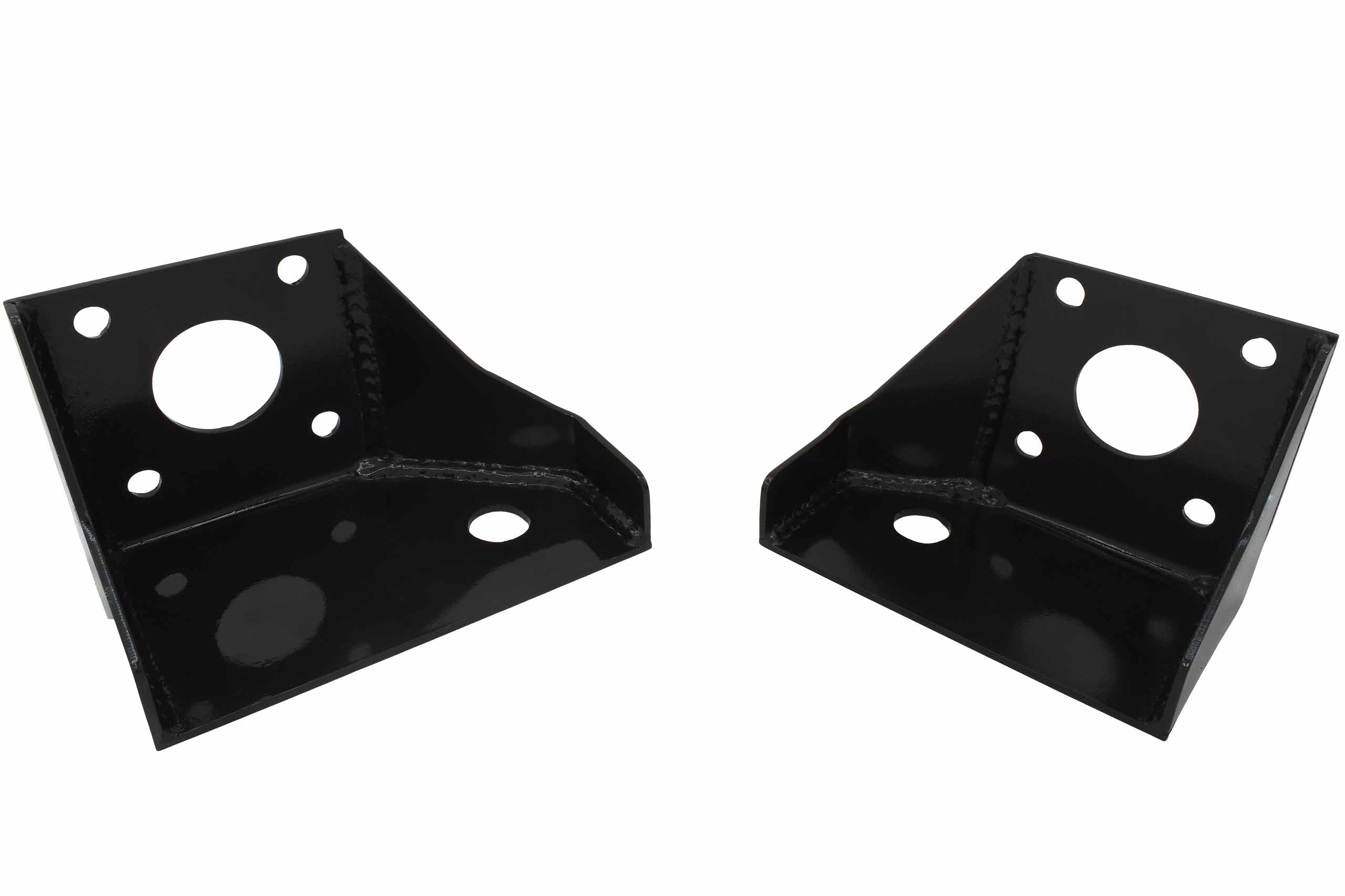

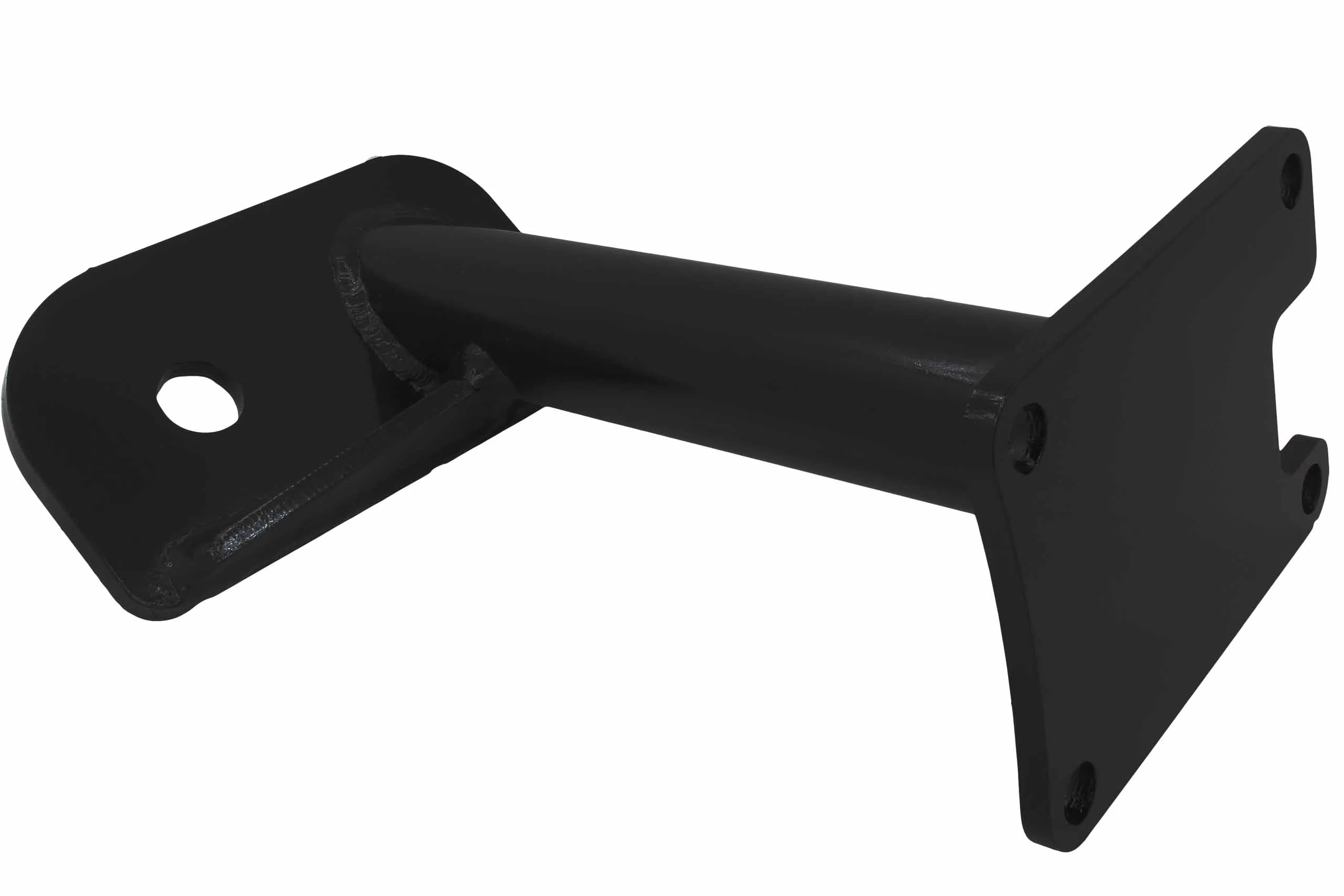

• Includes: engine mount, transmission mount, and bolts

Compatible with (based on vehicle 3D scans by ICT)

• Lamborghini Gallardo   04-12




Requires swap components:

• LS4 water pump assembly 89018039
• LS4 thermostat 12600178
• LS4 radiator cap 15293434
• LS4 balancer 12635650
• LS4 idlers 12596977,12569736, and 19252589
• LS4 AC compressor 19418180
• Power steering pump 19369077
• Power steering pump pulley 12597211
• Power steering reservoir 88964568
• Power steering reservoir cap 15267531
• Power steering reservoir hose 15898529
• Moroso oil pan 20138
• Moroso oil pickup tube 24052
• SLC Grazziano Transaxle to LS engine adapter plate
• Manual pedal box 401721140R
• E-Gear removal block 086311681
